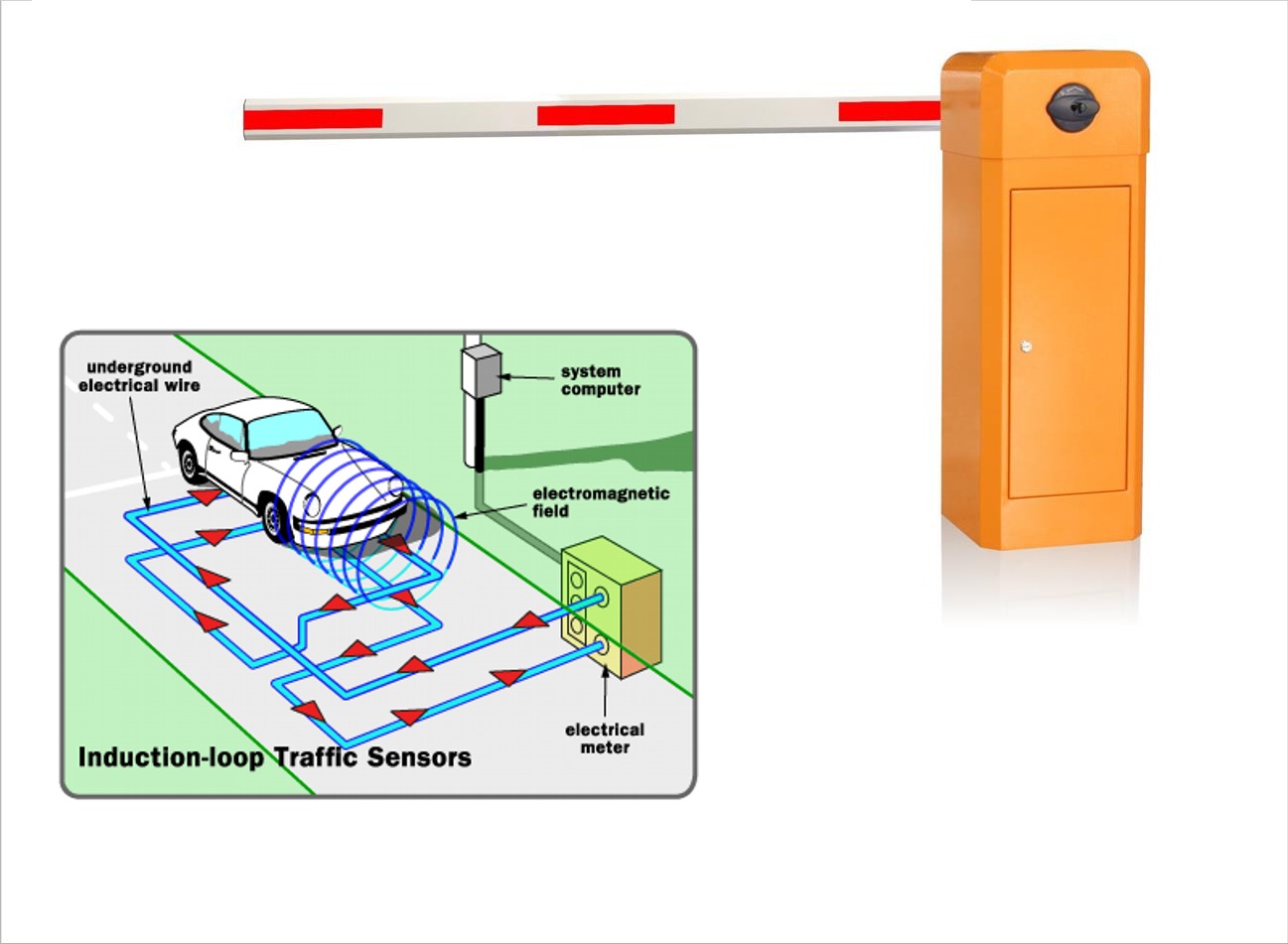

barrier gate system 4 5m 1


Automatic Gate Barrier SUNFRE


Arm type: Straight, 90 or 180-degree Folding or Fence type

Opening/Closing time (Optional): 1-6s (1s, 1.8s, 3s or 6s)

Length of arm (Optional): 1-6m (3m, 4m, 4.5m or 6m)

Working distance: <=50m


Basic Features:

1. By-security. The barrier gate will automatically go back when meet obstacles during closing.

2. AC motor is more powerful and no maintenance.

3. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate

4. closing time is also arranged from 1 second to 6 seconds.

5. The barrier gate can be both right-installed and left-installed.

6. All the operation process is soft without any noise and shaking.

7. Infrared photocell interface, Loop detector interface and IC system

8. interface are reserved for the other functions.

9. Green light and red light are used inside for indication the position of the beam.


Advanced Features:

1). Clutch key can be used to open the clutch when power off.

2). Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3). Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.

4). Thimble type motor worm design for preventing plugging up in using.

5). Balance spring no noise and easy adjusting design.

6). Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.


 Technical data:

1) Beam length: <=6m (3m, 4m, 4.5m or 6m)

2) Opening (Closing) time: 1s, 1.8s, 3s or 6s

3) Center height: 0.83m

4) Machine core working temperature: -40 degrees to +75 degrees

5) Electric working temperature: -20 degrees to +75 degrees

6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7) Rated power: 120W

8) Relative humidity: <=90%

9) Remote control distance: >=30m

10) Barrier Arm Width & Heigth:10*45mm&80*45mm
