GSM & PSTN Dual-Net Alarm System with APP Control: ZDAS-Q8 is a state-of-the-art wireless & wired alarm system designed for the residential and small business markets that provides more than a standard home security system. Support Remote control by App, phone call, or SMS, Auto Arm/Disarm, Two way intercom function, built-in Temperature sensor and 1 Wired Relay output to work for home appliances, Quad-band GSM communication applicable for worldwide.

PSTN will be applied in priority and GSM works as backup, thus the dual networks alarm system enhances the security level for your home.


FEATURES :

  • Panel with Touch keypad + LCD screen + Built-in Siren, Calender, extra SMS/Alarm control output, elegant cutting edge design.
  • GSM / telehone auto switch,
  • 100 alarm logs,Advance zone attribute, user-friendly zone names
  • Support entry & exit delay,Timing Arm/Dis-Arm
  • Automatically Arm /Disarm
  • Support iOS APP and Android APP Remote Control
  • 30 wireless + 4 wired zones, each zone can put 4pcs sensor, 10pcs remotes can be coded.
  • Makes phone call and receive call from alarm panel
  • Intelligent door sensor included (with door/window open, close signal)
  • Temperature display and signal output
  • Support 1 Wired Relay output
  • Remote control by App, phone call, or SMS
  • Built-in Speaker & Microphone, support 2-way intercom function
  • Recording Voice memo for 10 seconds
  • 3 Quik alarm + 2 Speed Dial key on panel
  • SMS alert, when system: Arm / Disarm, sensor's low battery, AC power failure/recovery, phone line disconnect.
  • Support 5 Alarm call + 1 Alarm Center call
  • Panle Tamper protection
  • Support user code and installer code, inquiry system's status.
  • Backup rechargeable battery,last more than 24 hours
  • User define the alarm zone's name
  • Work with CCTV system, IP camera.
  • Quad band: GSM850/900/1800/1900MHZ
  • Compatible with CONTACT ID protocol

SPECIFICATION :

  • Alarm communications: Transmitting alarming signal by PSTN dialing and GSM dialing
  • Alarm communication protocol: ADEMCO Contact ID
  • Support GSM frequency: GSM850/900/1800/1900MHZ (Quad-Band) applicable for universal.
  • Wireless frequency: Available in 315MHz/433MHz
  • Oscillation Resistance: 1.5MΩ /3.3MΩ /4.7MΩ optional
  • Touch Keypad: Capacitive touch screen
  • Protection zone: 30 wireless zones, 4 wire zones
  • Working power voltage: Input: AC 110~220V 50-60Hz; Output: DC12V /1A
  • Static current: <35mA; Alarm current: <120mA;
  • Built-in Li-ion backup battery: 3.7V,800mA,
  • Coding type: learning code
  • Wireless receiving distance in open place: >200m, indoor: 30~50m, (depend on the surrounding environment and wireless interference)
  • Alarm volume: internal :45dB, external siren: 110~120 dB
  • Communication protocol: Ademco Contact ID
  • Working temperature: -20 ~ 55°C ; Working Humidity: 40 ~80%
  • Packing box: 19*14.5*9cm Weight: 1kg / kit

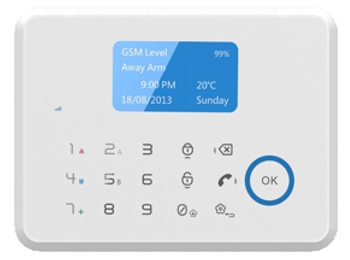

Alarm Panel

Control Panel

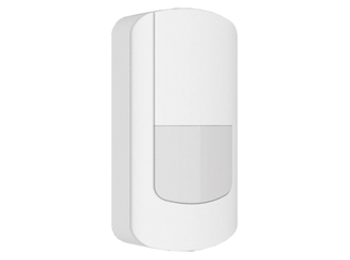

PIR

PIR Motion Detector

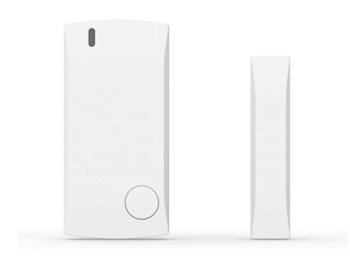

Door sensor

Door Sensor

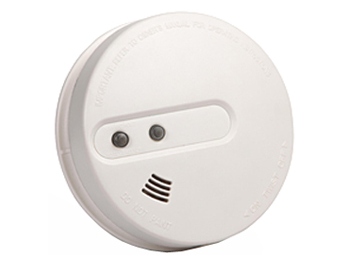

smoke detector

Smoke Detector

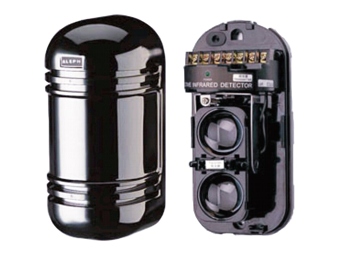

Beam

IR Beam Detector

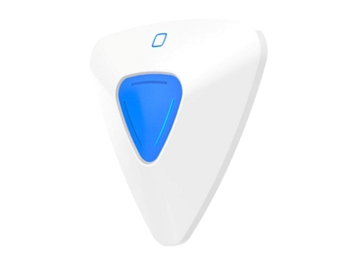

sirene

Wireless Sirene
